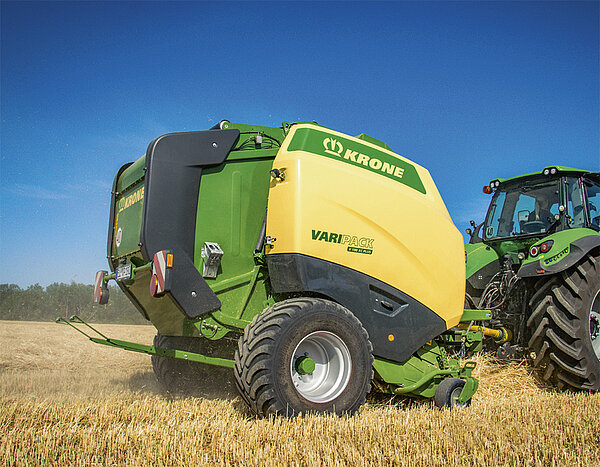

VariPack Plus

The KRONE VariPack Plus is specifically designed for baling dry material. VariPack Plus combines straightforward engineering with high throughputs and densities.

• Camless EasyFlow pick-up with chevron-lined tines and a minimum of moving parts
• Integral Rotor for maximum throughputs
• Precision cutting system for smooth and precise cuts
• Automatic cleaning of belts and guide rollers: Two cleaning rollers

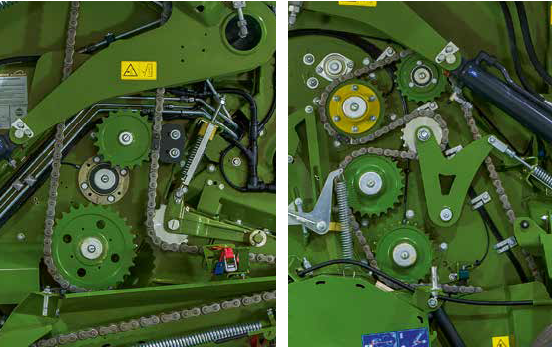

• Two drives for reliable bale starts and perfect shapes
• Roll chute is standard for easy net refills
• Auto controlled rear door and stroke end cushioned ram for fast unloading cycles
• Automatic grease applicator and oil lubricator

The high-performance baler VariPack Plus stands out for maximum bale densities and throughputs. The machine for farmers and contractors who aim high.

• Reliable and effective – 6 mm double tines arranged in a chevron-line and large-diameter coils
• A clean rake – 2.15 m pick-up for thorough and consistent rakes without losses
• Durable and hard-wearing – few moving parts reduce wear to a Minimum

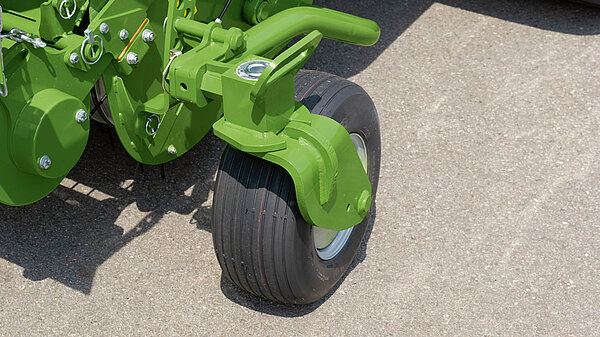

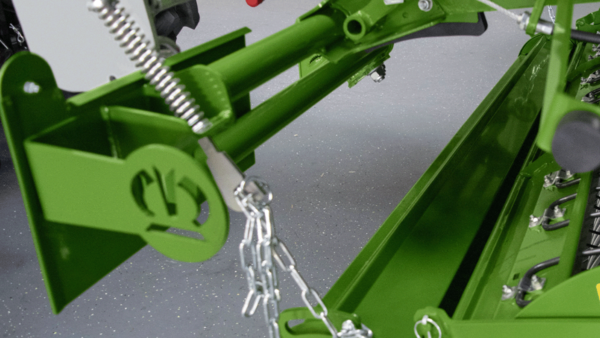

The EasyFlow pick-up pivots 70mm sideways and is renowned for persevering and diligent performance in the most difficult conditions and at high work rates. Thanks to its clutter-free build that relies on only very few moving parts, the unit stands out for minimum wear and maximum longevity.

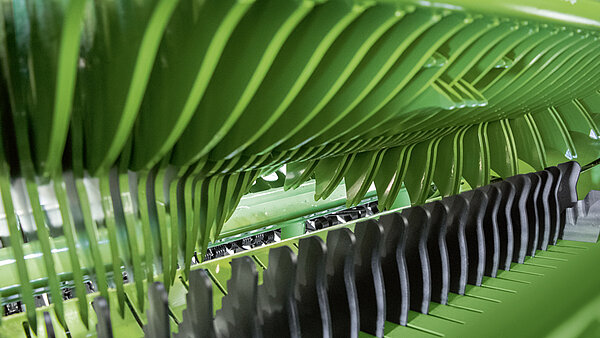

• Versatile and flexible – choice of an integral feed rotor or an integral rotor cutter with 26 blades
• Precision cut – the best quality from controlled cuts
• So sharp – for superior cutting quality
• So versatile – 0/ 13/ 13 or 26 blades in work

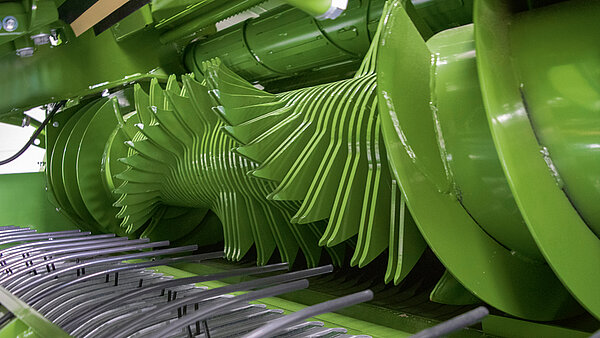

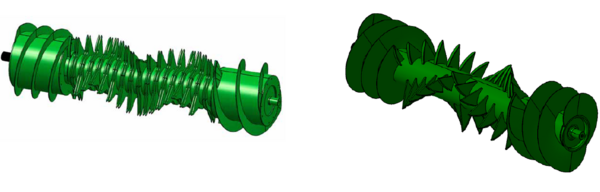

The integral rotor is available with or without a cutting system. Rugged by design, the unit performs dependably and reliability in challenging conditions. The integral rotor has feed augers integrated at its ends, a design that leads to a
significant reduction of the number of moving parts. Fewer moving parts translate into better cleaning, less service and maintenance and a longer lifespan.

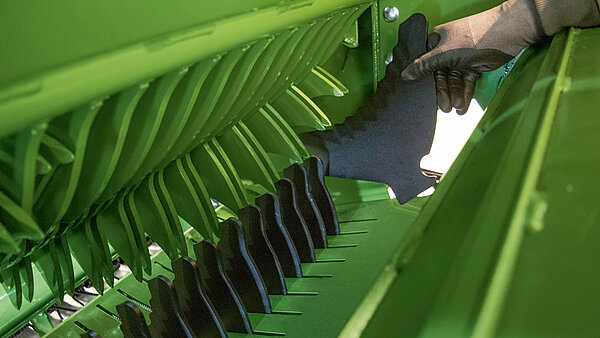

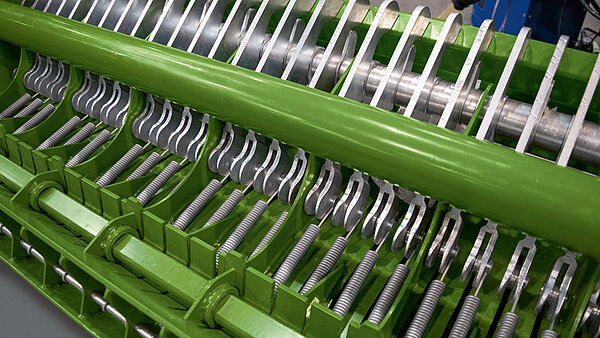

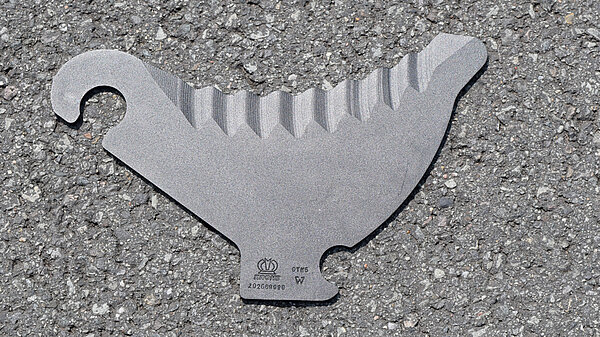

• The VariPack XC Plus cutting system has 26 blades

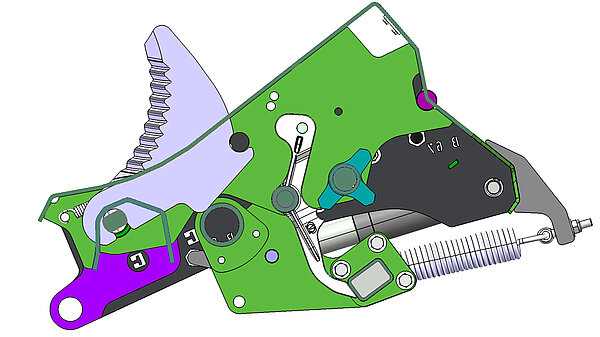

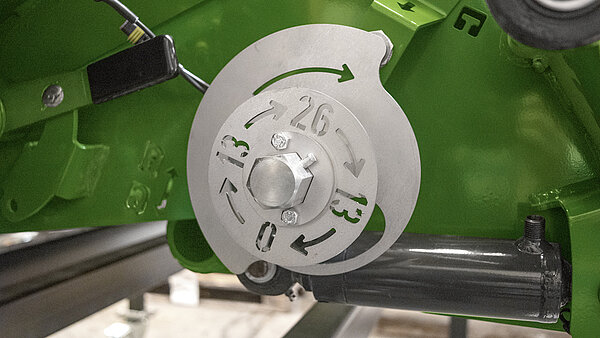

• The blade group control operates 0 / 13 / 13 / 26 blades

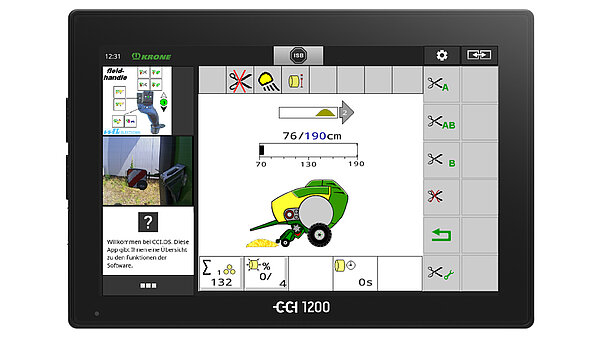

• „Each group is conveniently selected from the cab

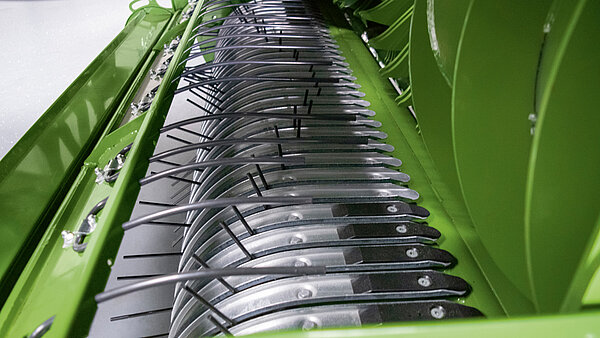

The standard cutting system on a VariPack has 26 blades that can be selected in groups of 0 / 13 / 13 / 26 blades to give cutting lengths of 84 mm or 42 mm for best results in all conditions. A potential blockage is quickly removed simply by dropping the floor.

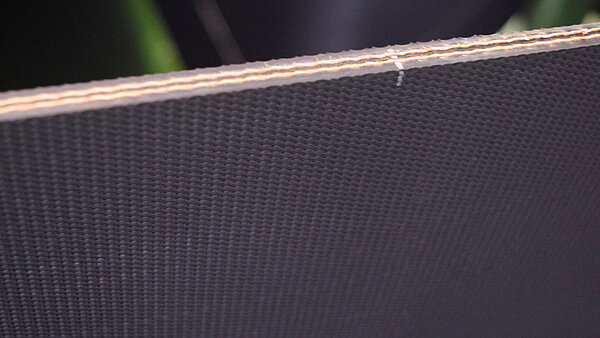

• Effective – three smooth belts form dry crops into high-density bales
• Fast – baling at a circumferential speed of 130 m/min
• Clean – actively cleaned belts

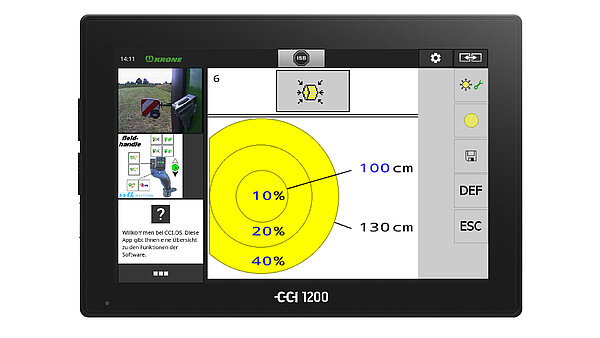

• Exact – baling pressure and soft core are set on the terminal

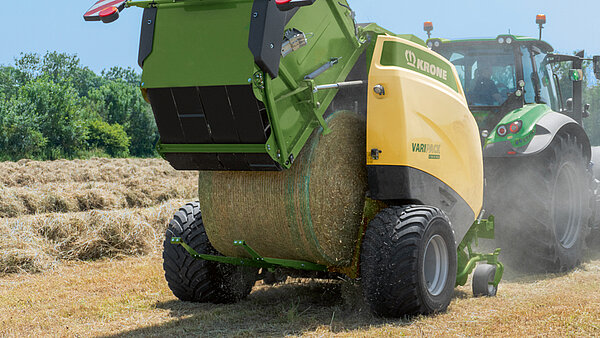

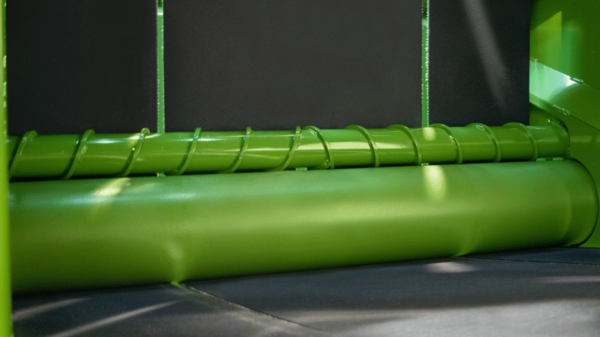

The VariPack Plus chamber is made up of three endless belts that feature a smooth surface. This design makes VariPack the specialist baler for dry material such as straw, hay and haylage. The belts are constantly cleaned by two rollers so they can reliably keep up their good work. The soft core kit allows you to produce bales for specific applications.

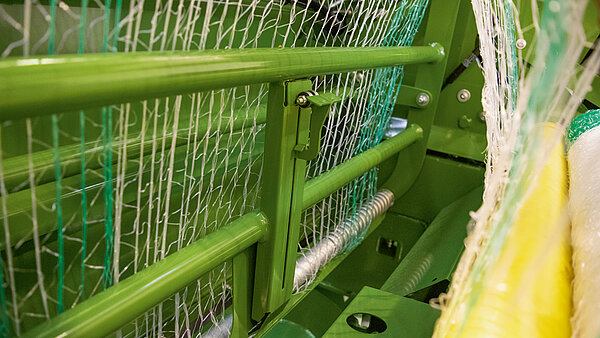

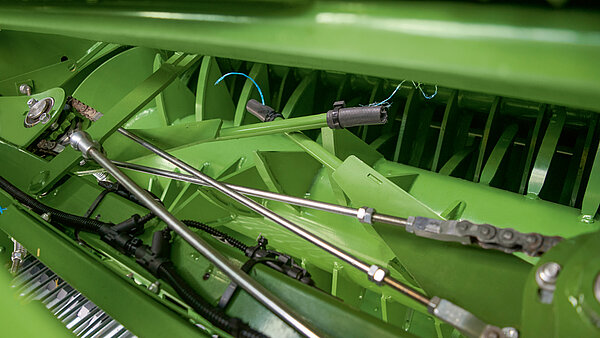

• Versatile and flexible – applying net and twine
• Straightforward – the net threads easily through the rigid net feeder
• Great visibility – the operator watches the process on the move
• Easy use – net/film feed starts automatically when the chamber is filled

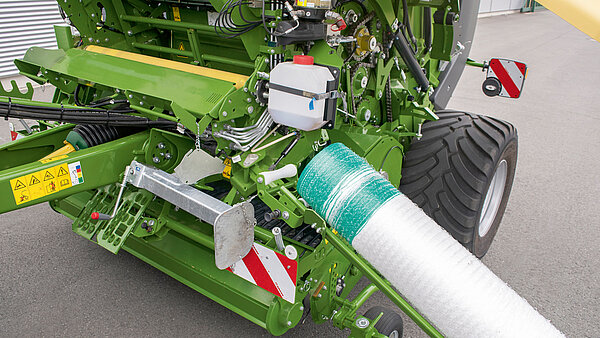

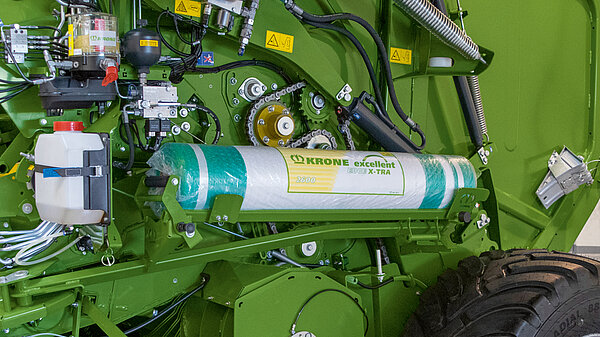

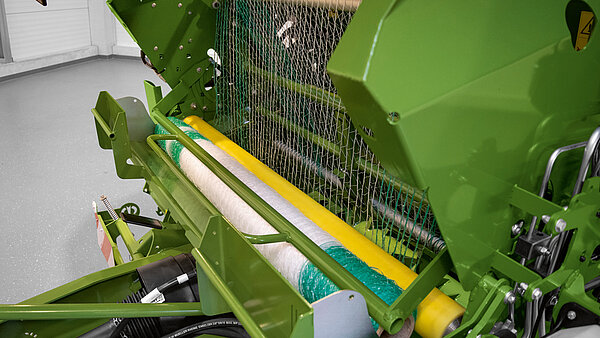

The VariPack Plus twine / net film wrapping system is simple, extremely reliable and easy to operate. The net chute folds out and into position so the roll is easily transferred to the cradle. The rigid net feeder makes for an easy net feed into the chamber. Spare net and twine rolls are stored on the machine to keep going on long working days.

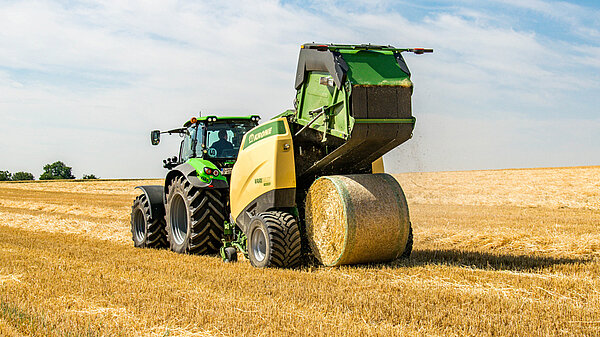

• Swift – less than 5-second open/close cycles
• Efficient – hydraulic cylinders with stroke end cushioning
• Convenient – automatic control of the rear door

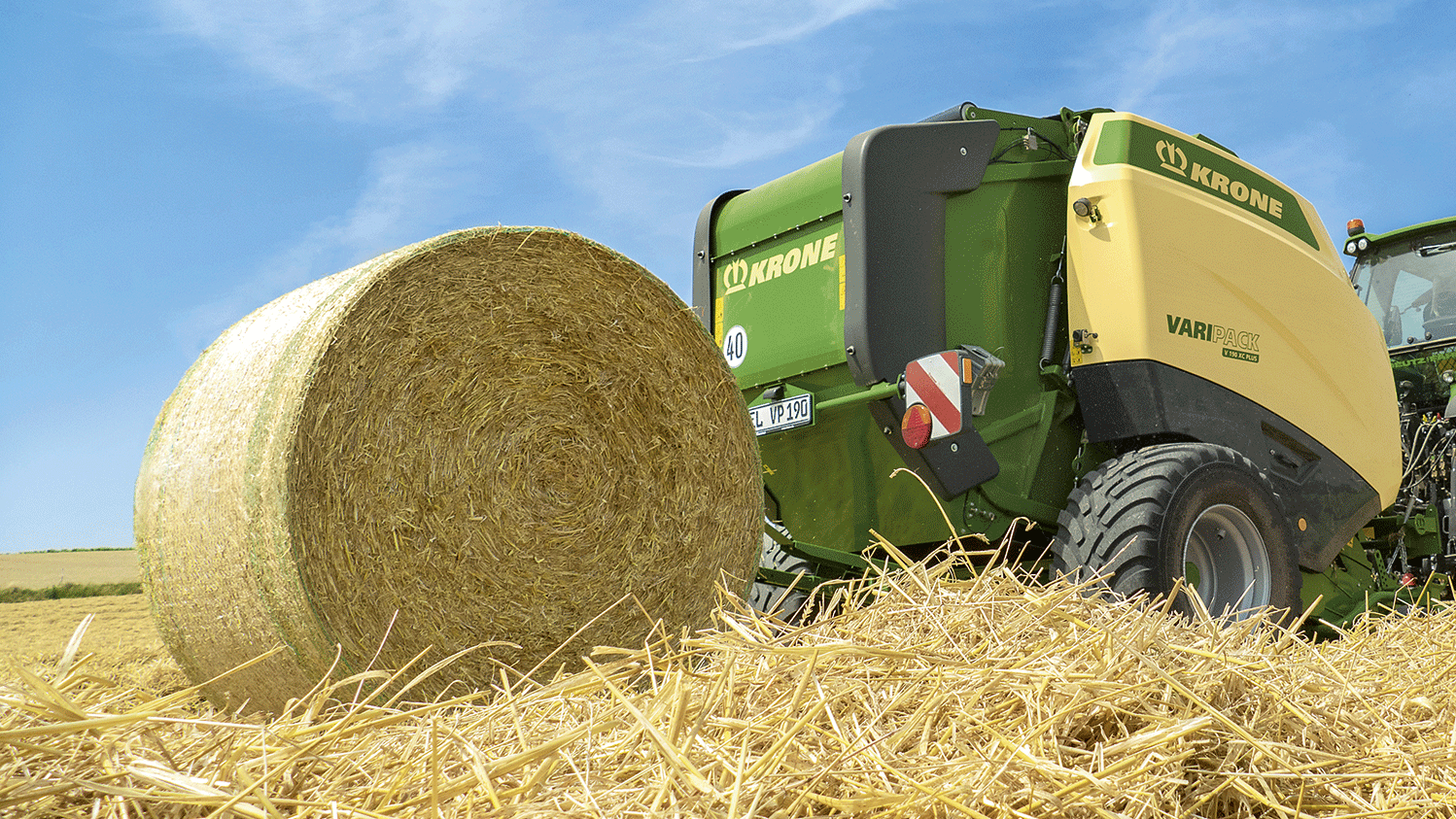

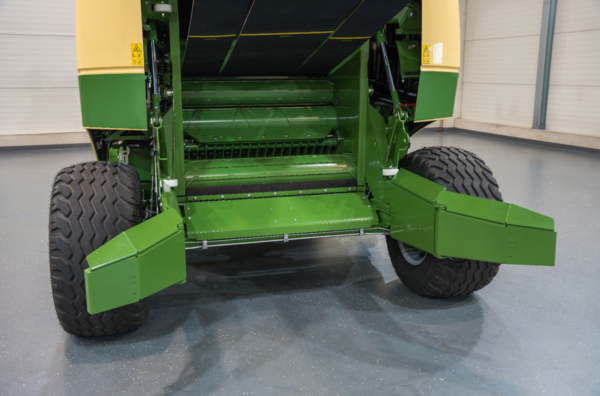

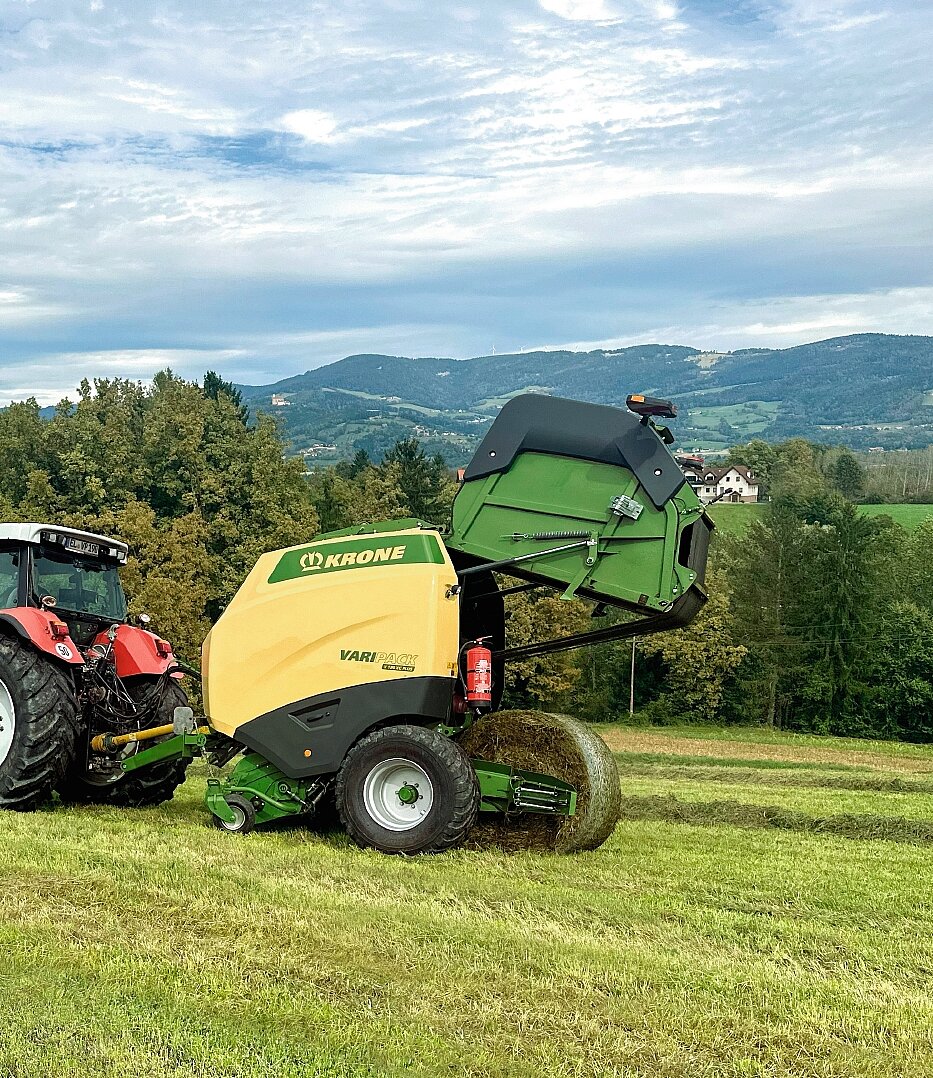

Highest densities and outputs are the outstanding landmark features of VariPack. More than that, these models also score on a simple design and exemplary accessibility. This translates into exceptionally easy servicing and lowest maintenance. The hydraulic cylinders that operate the rear door have stroke end cushioning and the rear door is automatically controlled for fast unloading cycles and maximum throughputs. The bale ejector lowers the bales safely and gently to the ground, also on the slope.

• „Versatile – four models with or without cutting system give various bale diameters
• „Variable – flexibility to set 0.80-1.65 /1.90 m diameters
• Convenient – set bale diameters on the terminal

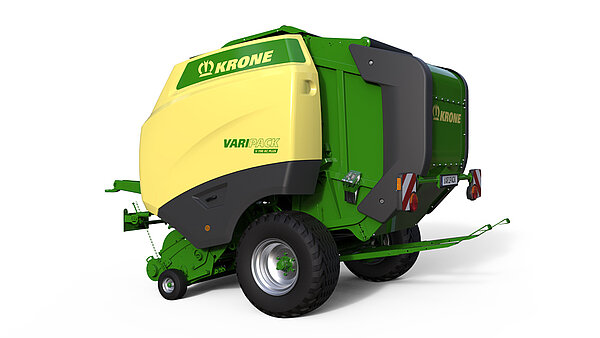

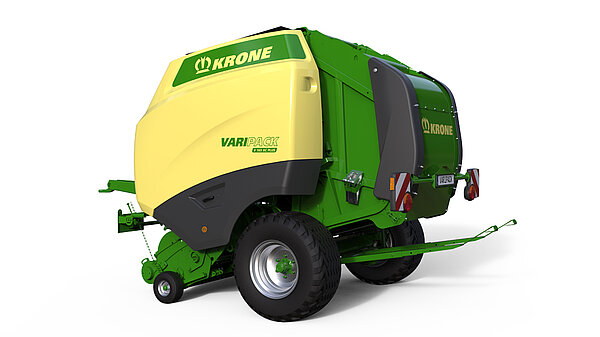

The VariPack Plus range lines up four models – the compact VariPack 165 (XC) Plus and the large-diameter VariPack 190 (XC) Plus. The models have different bale chambers but are identical in all other features.

• Load Sensing – only few hydraulic connections
• Hitching choices – various attachment options for all conditions

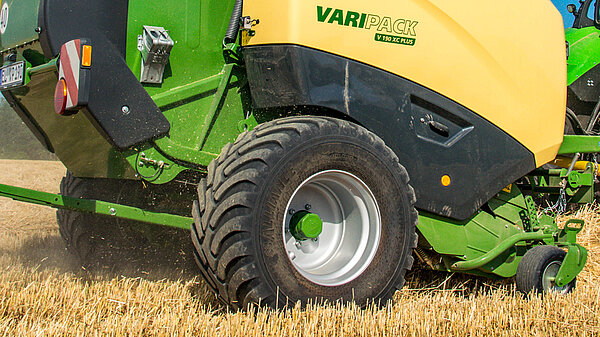

• Gentle treading – three tyre options for optimal protection of the turf

VariPack Plus is the machine for quick travel between fields, for undulating and boggy terrain and easy shunting in tight space. A wide range of additional options ensure the KRONE VariPack Plus is perfectly geared to deliver in your specific conditions.

• Versatile and flexible – wrapping net and twine

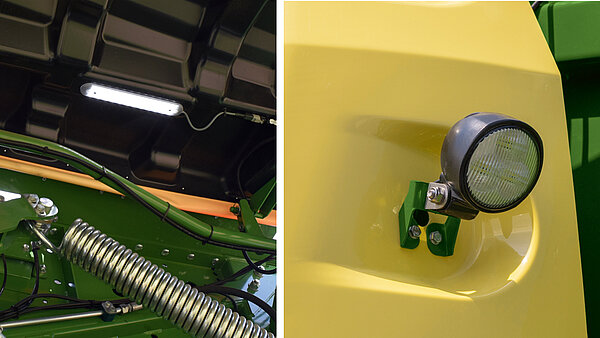

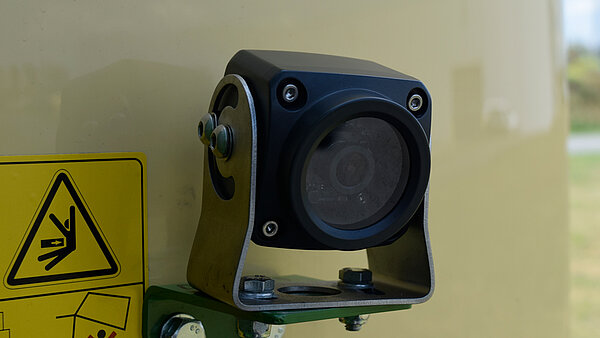

• Convenient – LED work lights and a CCTV camera system for full control

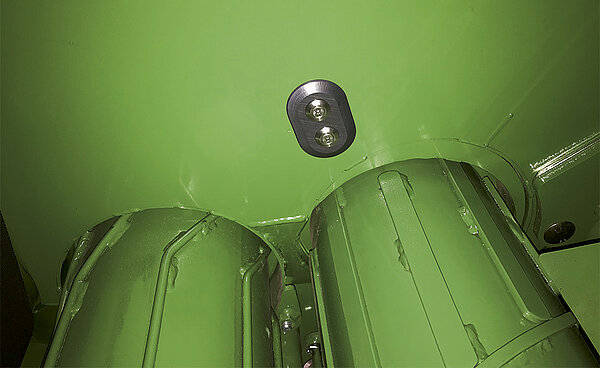

• Smart – moisture sensing technology keeps the operator up to date

VariPack Plus is designed for maximum performance and density. A number of options are available that help boost your productivity in special conditions. For example, working lights and cameras ensure you always have a clear view out over the machine and the moisture sensor informs you on the current moisture level of the crop.

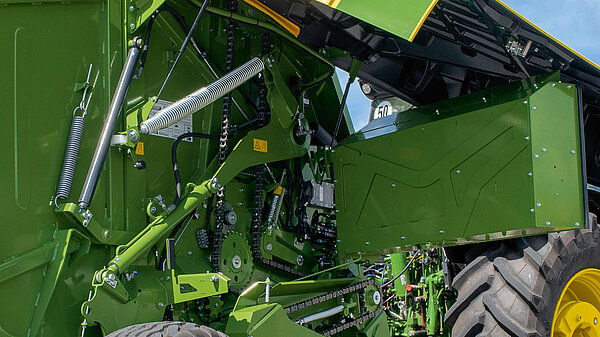

• Readily accessible – all service points are in easy reach

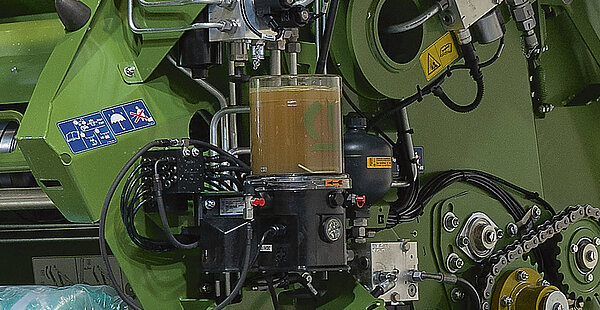

• Operator comfort – a central lubricator takes care of all grease points

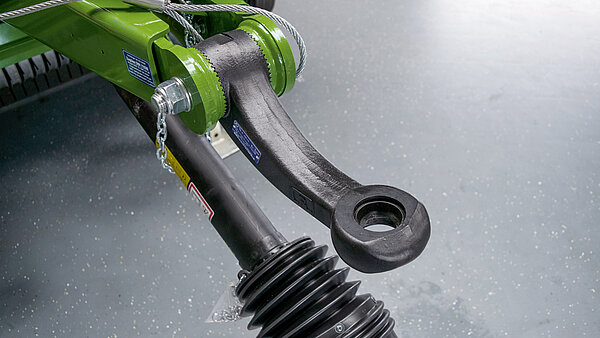

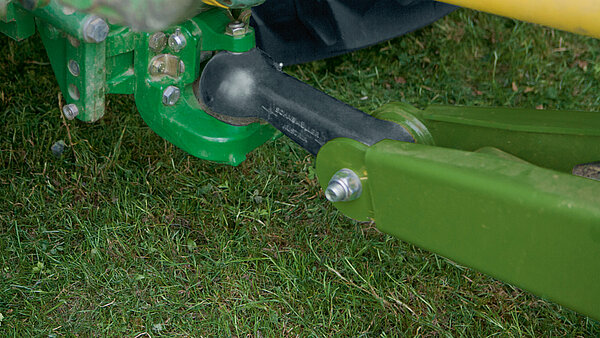

• Hitching choices – various attachments suit every tractor end

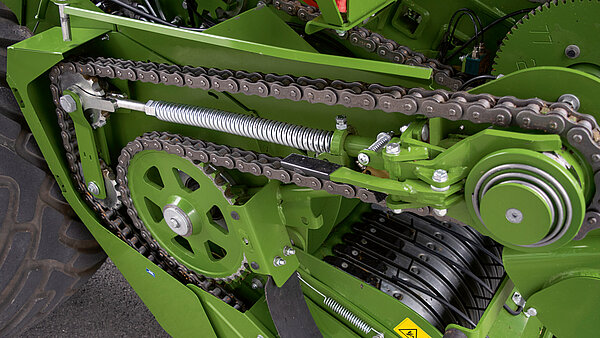

VariPack is designed as a simple machine where all service and maintenance points are readily accessible. All grease points are grouped and the chains are automatically lubricated – details that reduce the time spent servicing and increase your productivity. Further comfort details are automatic tensioners on the three drive chains.

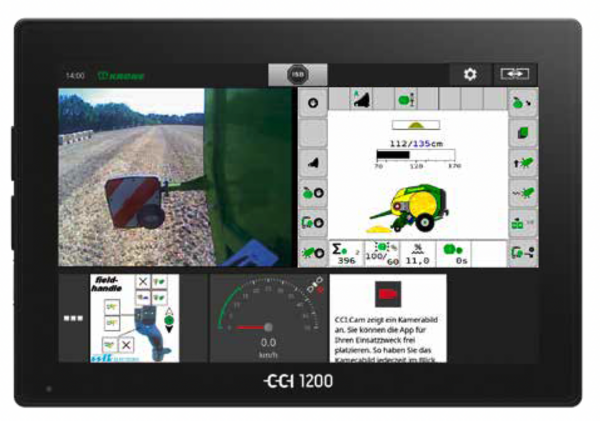

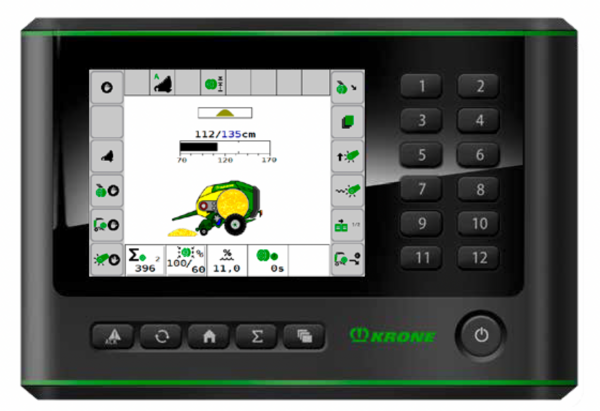

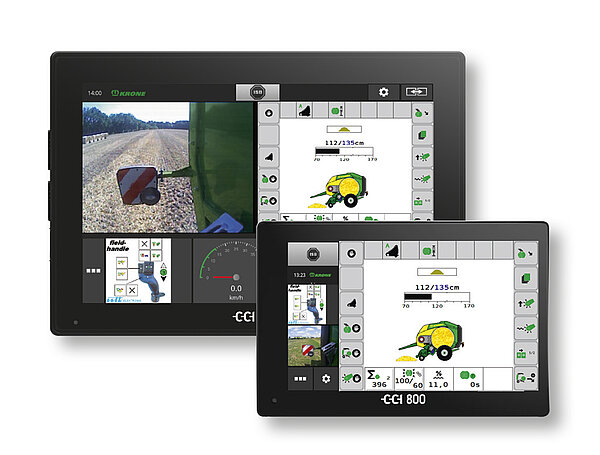

• Take your choice – our control units suit all needs
• Convenient – clear and user-friendly interfaces

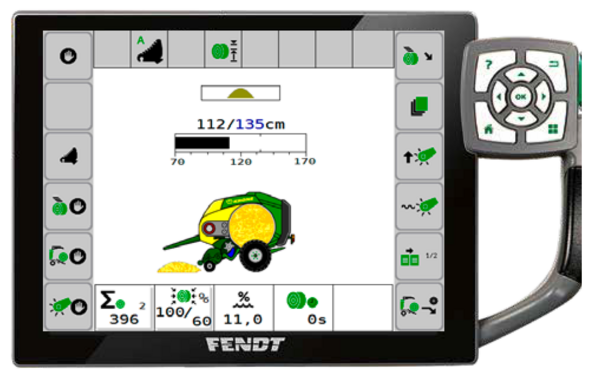

• Compatible – the ISOBUS tractor terminal is a standard feature

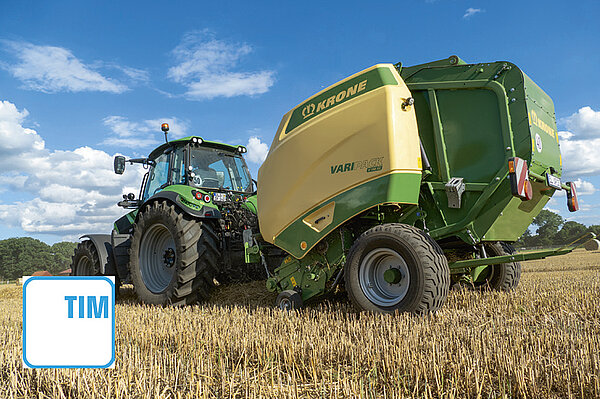

• Option – TIM Tractor Implement Control sees the baler control the tractor

The KRONE on-board Comfort electronics streamline, improve and accelerate all steps of baling, All this makes the baler fun to use. Various KRONE operating terminals are available for the different tasks.
